How to Update EyeDetect with a New Seat Pad Driver

Overview

In January 2024, Converus updated the seat pad included with the Physio Tracker v2 for EyeDetect+ customers. While the updates were minor, we have since identified incompatibilities between the seat pad driver and the EyeDetect software. To resolve this, a new driver must be installed.

Follow the step-by-step instructions below to complete the installation. We apologize for any inconvenience caused.


Installation Instructions

Step 1: Locate and Save the Driver File

  • The driver file (filename: CH341SER.EXE) is attached to the email sent to you.
  • Save the driver file to an easily accessible location on the EyeDetect Station.

Step 2: Restart the EyeDetect Station

  • Reboot the EyeDetect Station before proceeding with the installation.

Step 3: Install the Driver

  1. Open Windows Explorer and locate the saved driver file (CH341SER.EXE).
  2. Double-click the file to begin installation.
  3. If prompted, allow the application to make changes to the Station.

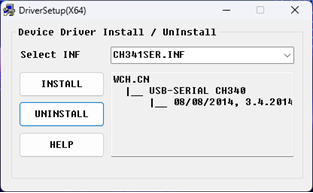

  4. In the dialog box that appears, click Install.                                          Picture6.png
  5. If the installation is successful, a confirmation message will appear.Picture2.png

Step 4: Troubleshooting Installation Failure                                        Picture3.png

If the driver installation fails, follow these steps to uninstall and reinstall:

Uninstall the Driver

  1. Locate CH341SER.EXE in Windows Explorer.
  2. Double-click the file and select Uninstall.Picture4.png
  3. Wait for the process to complete.
  4. A confirmation message will indicate successful uninstallation.Picture5.png

Reinstall the Driver

  1. Close the installer application.
  2. Double-click CH341SER.EXE again.
  3. Click Install when prompted.
  4. Upon successful installation, a confirmation dialog box will appear.Picture2.png
  5. Close the application.

Conclusion

After completing the steps above, the new seat pad driver should be successfully installed and fully compatible with EyeDetect. If you experience further issues, please contact Converus Support for assistance.
